KPJ Series railway flat carts are powered by the cable reels. The flat carts get power AC 380V through the device of cable reel which is installed
at the bottom of the cart. The motor is controlled by the power through the AC control system. We use this principle to operate the carts, for
example, start, stop, go forward and backward and so on. The operation system is low voltage 36V. The hydraulic lifting device can be installed
on the flat carts. This series’ flat carts are suitable to be used in the bad environment, for example, high-temperature and anti-explosion
condition. With its simple structure and low price, this series are more often used to transfer materials from one workshop to another. Compared
with the KPX series, the using time is not limited ; compared with the KPD series, it has no strict requirement for the construction of the railway.
The load capacity is not limited and can be used frequently. If the running distance is more than 50m, a cable arranger needs to be installed to
arrange the cables. The running distance of KPJ series can reach to 200m.

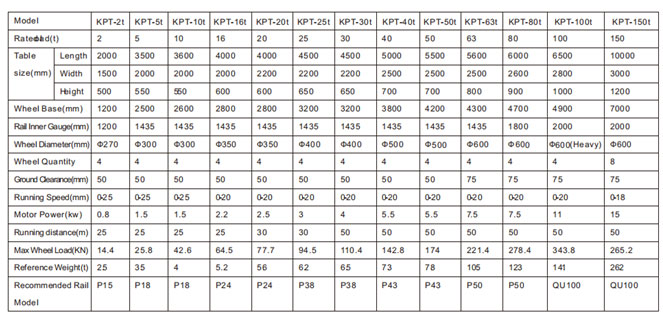

Technical Parameters for KPJ Series Rail Transfer Carts Powered by Cable Reel
