Description:
Electric wire rope hoists include CD and MD type,and are widely applied to lifting heavy weight or being installed with electric bridge crane or straight and curve T-shape beam;It is also used in the hoist double beam, gourd gantry crane or cantilever crane;It's easily operated in the factory, warehouse, railway and dock etc.
Main Components
MOTORS: We offer hoist & crane duty Vz hour rated squirrel cage induction motors, confirming to IS 325 with comparatively higher H.P. and higher starting torque to reduce handling time. It is flange mounted to suit our design and with Class B or F insulation.
ROPE DRUM : The rope drum is machined & grooved accurately, to ensure proper seating of wire rope in a proper layer. The drum is fitted with two heavy duty Ball / Roller bearings for smooth operation & longer life.
ROPE GUIDE: The rope guide is made of special close grain castings & is specially designed and accurately machined to suit the grooves of the rope drum & prevents the rope from overriding & loosening. It also operates the limit switches provided as a safety feature to limit the over hoisting & over lowering of the hook. The guide is so designed to ensure proper tensioning of the rope.
GEAR BOX: Totally enclosed oil splash lubricated & dust free gear box is provided for smooth, trouble free & longer life. All gears are helical type and cut from alloy steel / low carbon steel on hobbing machines for achieving higher precision & a special process of gear toughening ensures smooth, silent, trouble free running of drive system. The pinions and gears are supported on anti-friction bearings on both ends.
Wire rope: Comply with the exporting standards. The leading rope taken by drum, avoided slip when slack. Breaking safety factor is 6 times
Voltage: 220v/380/400v/415v/440v 3phase 50/60hz
Hook: It is tested to 150% of full load. Rope sheaves are fully guarded with protective steel casting. All sheaves are rotate on ball bearing, also the pulley is thicken than common pulley

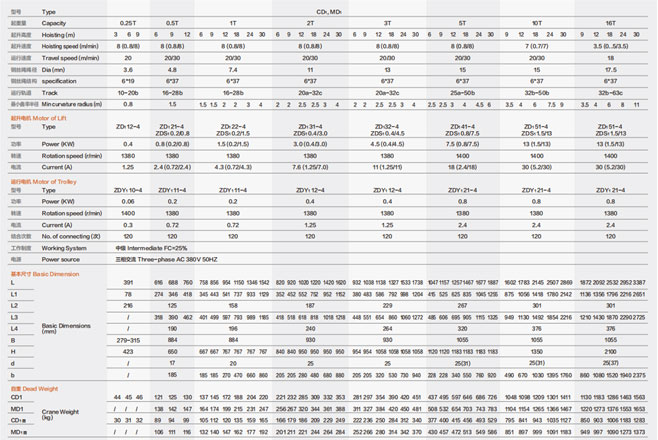

Specification:
