Description

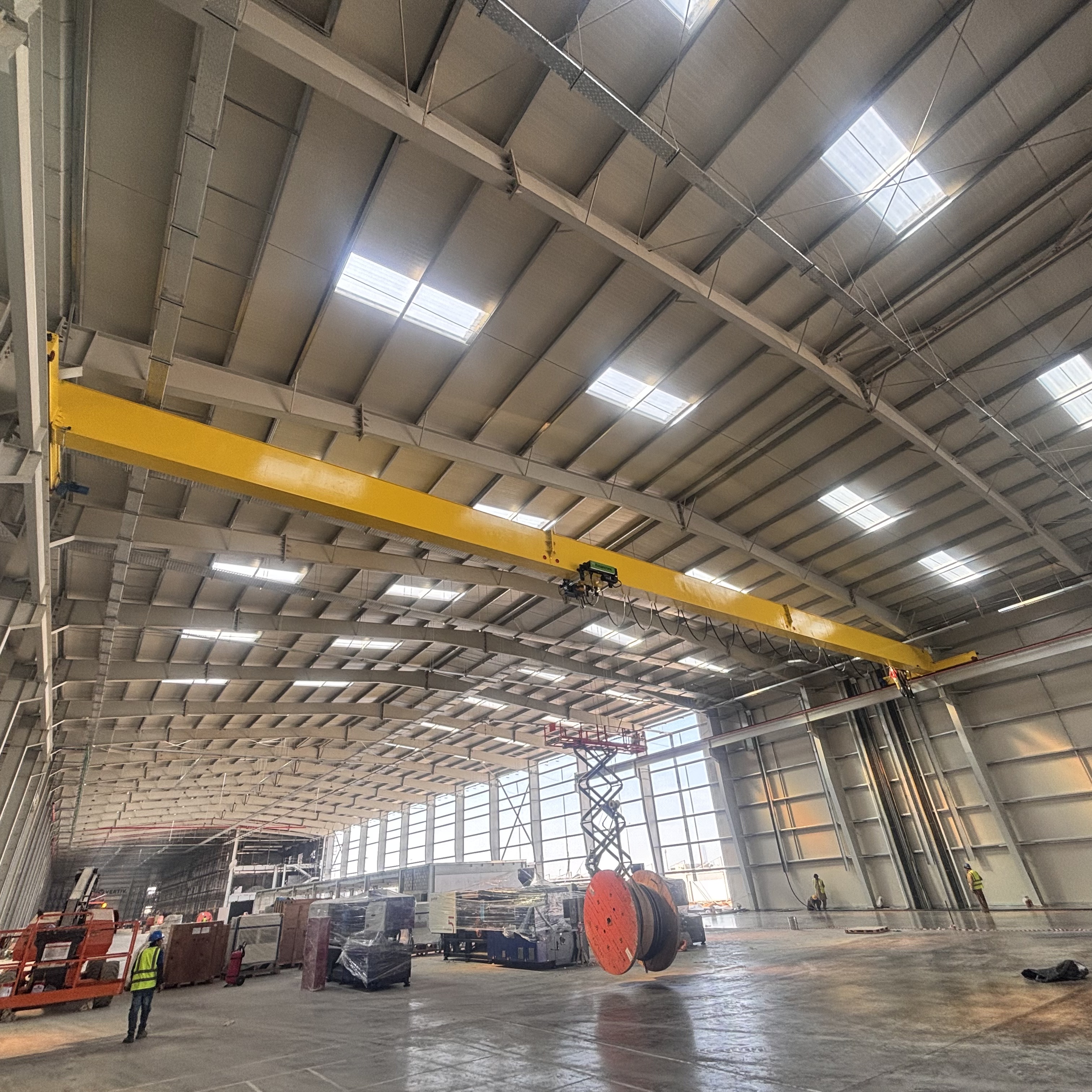

European standard single-girder crane is a high quantity crane that combines foreign advanced technology and adopts European standard design. It has strong rigidity, small size, light weight, modular structure design, high safety, maintenance-free and other advantages, which can greatly effectively save plant space， Plant investment and Maintenance cost.
It consists of crane traveling mechanism, lifting mechanism, hoist traveling mechanism, electrical control system, etc
Fine Welded process of beam, VVVF traveling system , Various operation method for choosing :Cabin, wireless remote or pendant !
Feature：
1. The crane has small dimensions, light weight and low headroom, which saves the height of the workshop.
2. Adopting modular design, maintenance-free important parts, reducing operation and maintenance costs.
3. Lifting speed is double speed, traveling speed is VVVF, suitable for high-precision hoisting.
4. The steel structure is made of Q355, and the main beam is box beam with high rigidity.
5. Imported drive, high precision parts processing, stable operation and long service life.
Specification:
European standard single-girder crane is a high quantity crane that combines foreign advanced technology and adopts European standard design. It has strong rigidity, small size, light weight, modular structure design, high safety, maintenance-free and other advantages, which can greatly effectively save plant space， Plant investment and Maintenance cost.
It consists of crane traveling mechanism, lifting mechanism, hoist traveling mechanism, electrical control system, etc
Fine Welded process of beam, VVVF traveling system , Various operation method for choosing :Cabin, wireless remote or pendant !
Feature：
1. The crane has small dimensions, light weight and low headroom, which saves the height of the workshop.
2. Adopting modular design, maintenance-free important parts, reducing operation and maintenance costs.
3. Lifting speed is double speed, traveling speed is VVVF, suitable for high-precision hoisting.
4. The steel structure is made of Q355, and the main beam is box beam with high rigidity.
5. Imported drive, high precision parts processing, stable operation and long service life.
Specification:
|
Capacity (t) |
Span (m) |
Lifting height (m) |
Lifting speed (m/min) |
hoist Traveling speed (m/min) |
Crane Traveling speed (m/min) |
| 2t | 7.5~28.5 | 6~18 | 5/0.8 | 0~20 | 0~20 |
| 3.2t | 7.5~28.5 | 6~18 | 5/0.8 | 0~20 | 0~20 |
| 5t | 7.5~28.5 | 6~18 | 5/0.8 | 0~20 | 0~20 |
| 8t | 7.5~28.5 | 6~18 | 5/0.8 | 0~20 | 0~20 |
| 10t | 7.5~28.5 | 6~18 | 5/0.8 | 0~20 | 0~20 |
| 16t | 7.5~28.5 | 6~18 | 4/0.6 | 0~20 | 0~20 |
| 20t | 7.5~22.5 | 6~18 | 4/0.8 | 0~20 | 0~20 |
